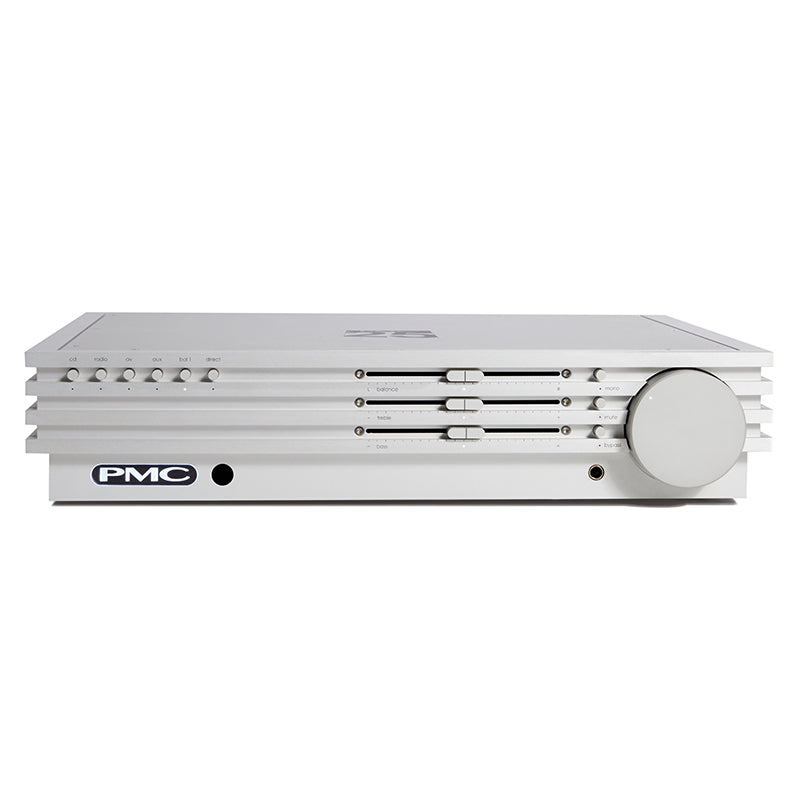

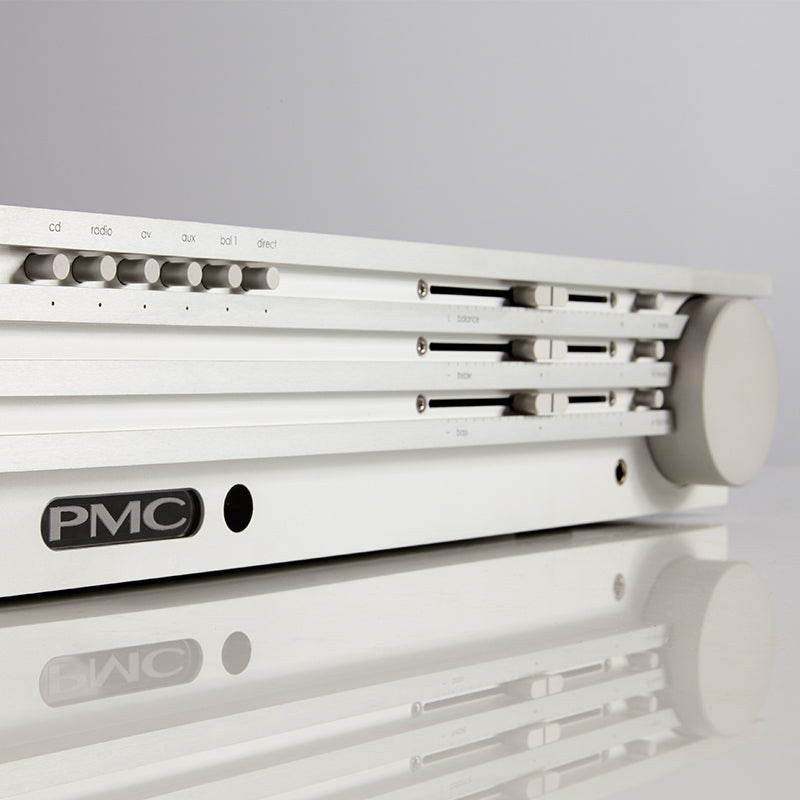

PMC COR Integrated Amplifier

PMC COR Integrated Amplifier

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price $ 142,003.00
Regular price Sale price $ 142,003.00
Sale Sold out
Finishes

Part Exchange / Trade In Quote?

The cor integrated is an amplifier that adds no sonic character of its own to the music. It follows exactly the same design ethos for high resolution playback as used in the creation of all PMC’s loudspeakers, namely musicality, transparency and neutrality, where nothing is added and nothing is taken away. The role of the amplifier, like the company’s speakers, is to reproduce the music exactly as it is meant to be heard.

Designed and hand-built by PMC in the UK, the cor - the dictionary definition of which is: (anatomy) heart; (figuratively) soul, mind - is an integrated amplifier that works entirely in the analogue domain.

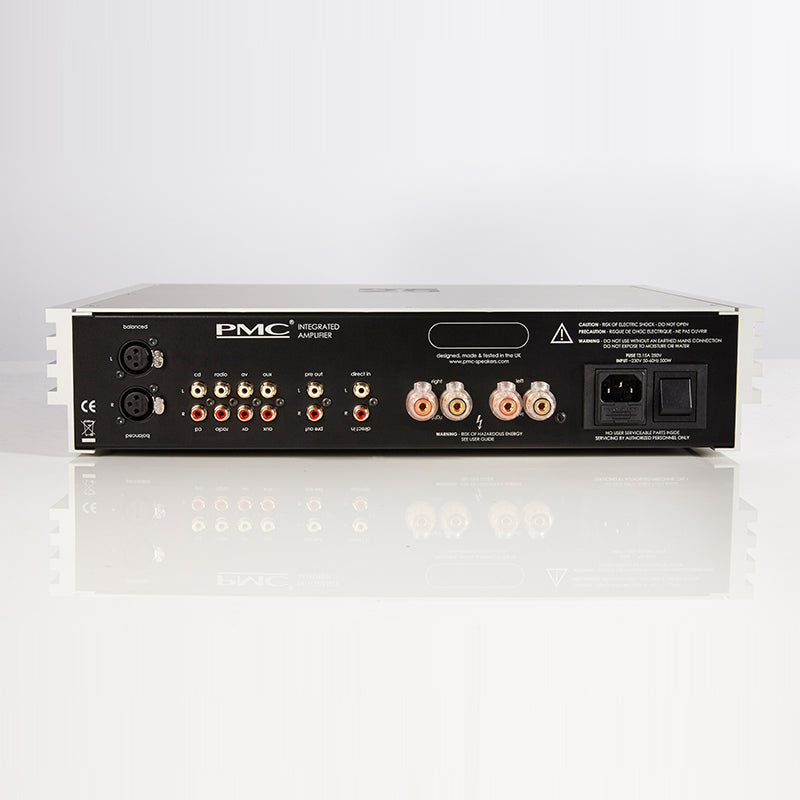

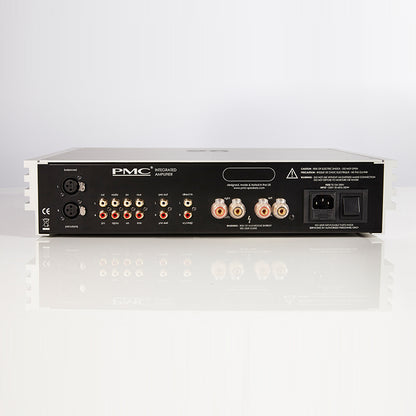

Every element of the cor has been developed with purity of sound at the top of the criteria list. The four unbalanced RCA analogue inputs are joined by one pair of balanced XLR inputs and a set of direct inputs that connect straight to the power amplifier. The cor integrated does not feature any digital inputs and is unashamedly an analogue amplifier for the purist.

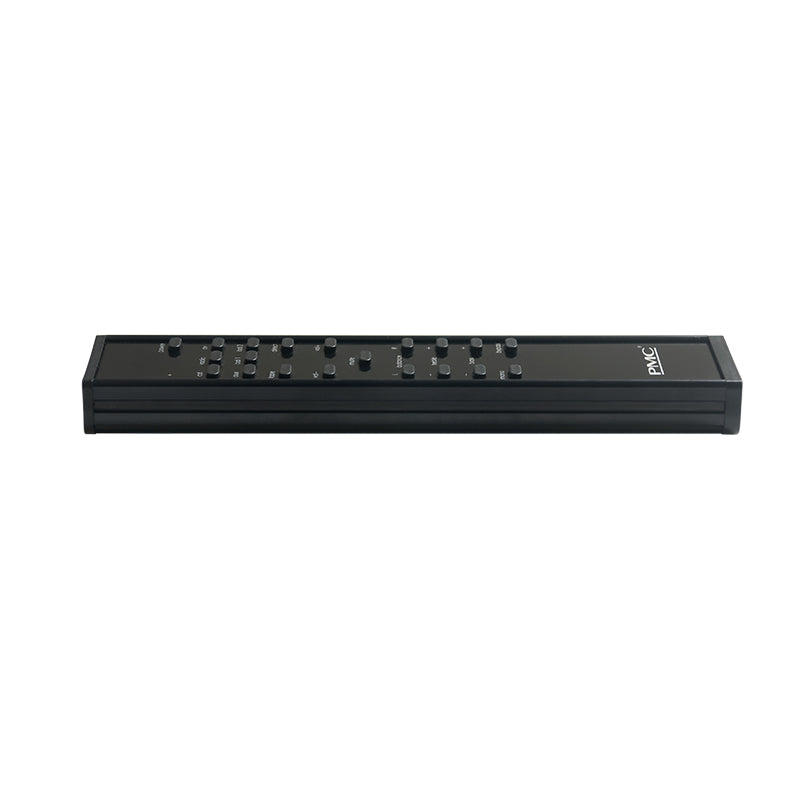

All the components were specified without compromise after extensive listening tests, including the black PCBs and the volume control, which, together with the tone and balance faders, are motorised using the finest technology from professional mixing consoles, and are remote controllable. This provides flexibility to achieve the perfect sound on every track, without moving from your armchair.
Hear all the magic of music, with the cor integrated amplifier.

Specs
Type: Pure analogue Class A/B integrated amplifier
Inputs: 1 x balanced, 4 x single-ended, direct in
Outputs: 4mm binding posts, preamp out
Frequency response: 20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB
Maximum gain: 215dB
Tone controls: +/- 10dB
Input impedance: 25kOhms, unbalanced >14kOhms, balanced
THD: 0.001% at 1kHz
Maximum input: 5.5Vrms
Maximum output: 10Vrms
Rated output power, 230V mains: 95W into 8Ohms,140W into 4Ohms
Frequency response: 20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB
Input impedance: 23.5kOhms
Sensitivity 1V = 100W into 8Ohms
Gain: 28.9dB
THD (Rated output power into 8Ohms): 0.001% at 1kHz
Noise: -101dB A-weighted re. rated output
Damping factor >160 into 8Ohms, 20Hz - 20kHz
Dimensions: 87.5mm (3.4") H x 432mm (17") W x 401mm (15.8") D - inc. feet
Weight: 12kg (26.5lbs)
