Pioneer VSX-534 5.2 AV Amplifier
Pioneer VSX-534 5.2 AV Amplifier
Regular price
$ 10,696.00
Regular price
Sale price
$ 10,696.00
Unit price
per
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?

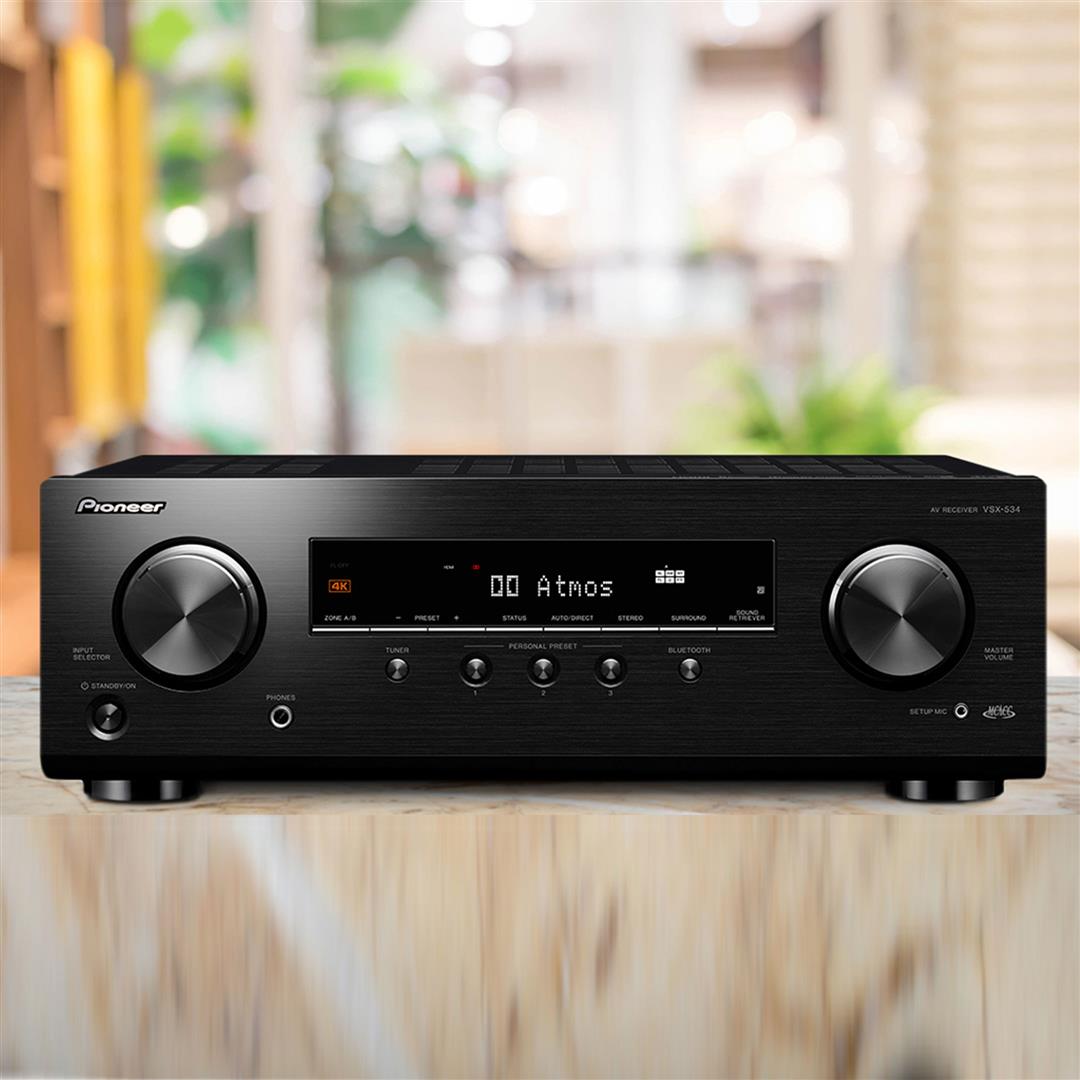

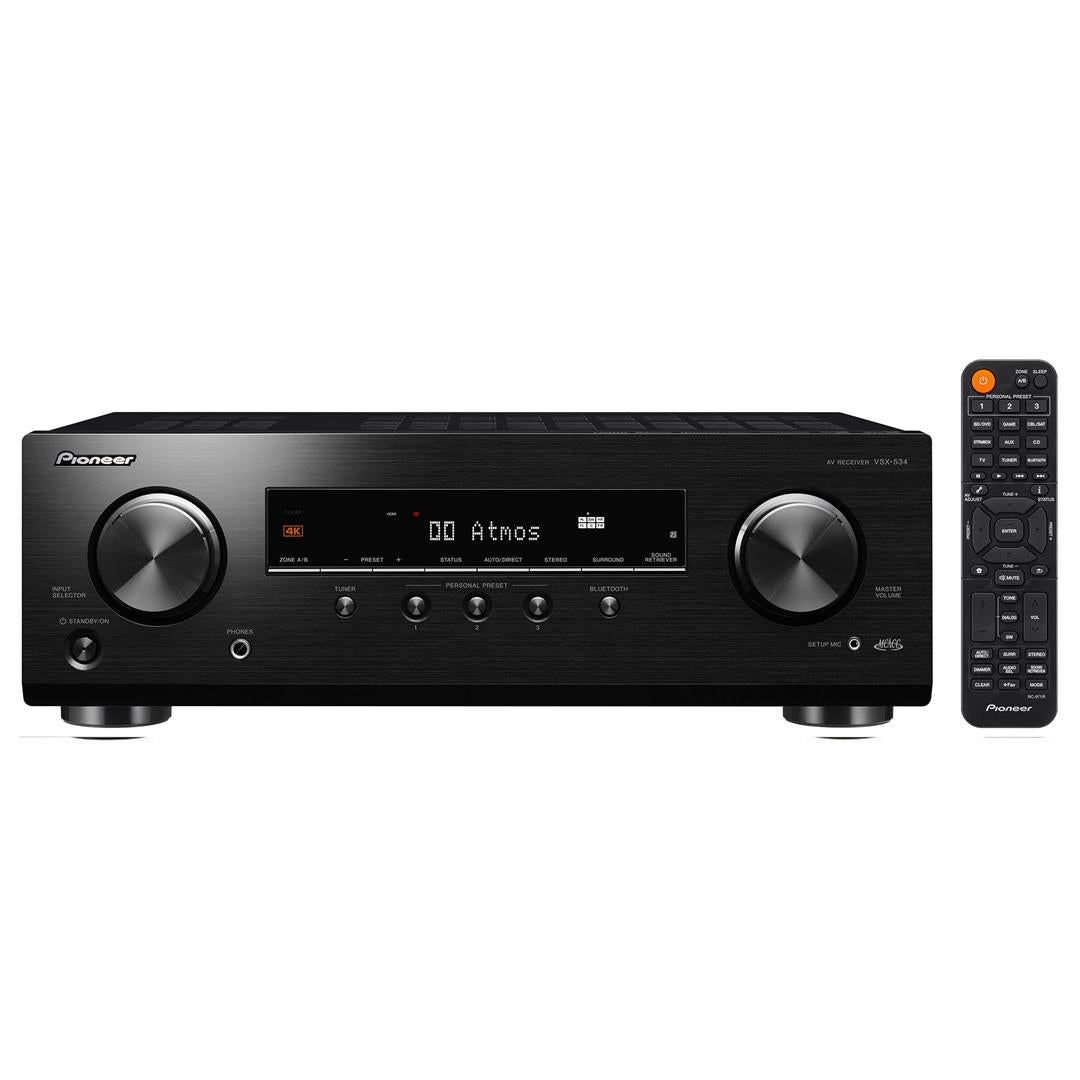

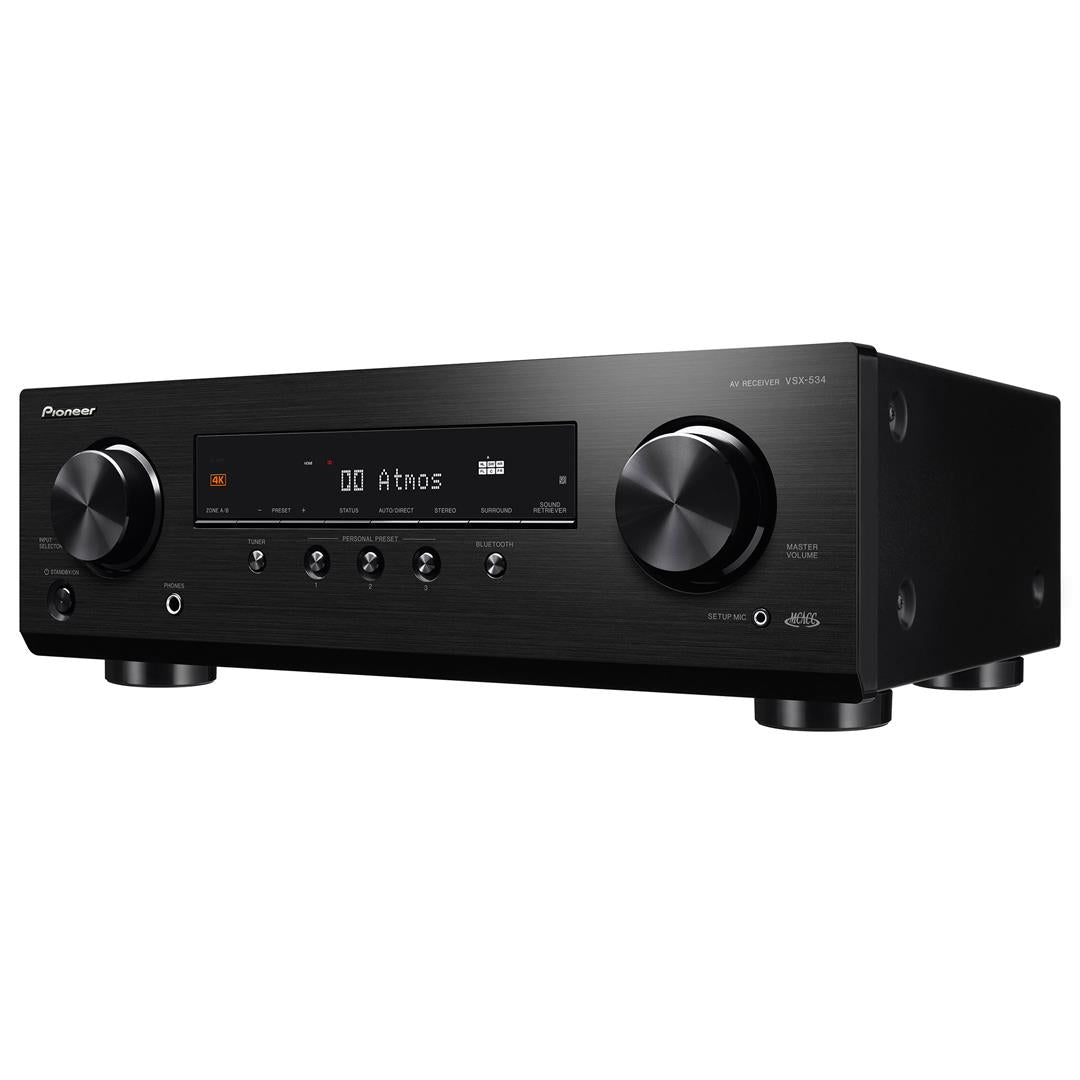

The VSX-534 5.2 Channel AV Receiver features Dolby Atmos immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly new design, with a 12% slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS: X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer* and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.
You get a top-notch receiver with surround sound capabilities without having to spend a fortune.
DTX:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
DTS Virtual:X*
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
Zone B output for wireless headphones
You can listen to the sound playing in the living room via wireless headphones.
You can listen to the sound playing in the living room via wireless headphones.
Smooth and easy Bluetooth streaming
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
Personal Preset
Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
Dolby Atmos height virtualisation
Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
MCACC Auto Room Tuning
With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.
Dialogue Enhancement
Make volume adjustments to the range including dialogue in films, with the up/down key on the remote control.
Key Features:
- HDMI 2.1
- Ultimate 4K Gaming Experience
- 80 Watts per channel (8 ohms)
- Subwoofer 2 Pre Out
- Dialogue enhancement
- Dolby Atmos height virtualisation
- Immersive sound from your TV apps
- Advanced MCACC
- Available in Black finish only
Specs
| Channel | 5.2 |
| Amplification Type | Direct Energy |
| Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven) | 80 W/ch |
| Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) | 150 W/ch |
| Digital Core DSP Engine | Digital Quad-Core 32-bit DSP (Cirrus Logic) |
| Music File Playback/td> | 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB |
| Dolby Atmos | Yes |
| Dolby® TrueHD | Yes |
| DTS:X | Yes |
| DTS Neural:X | Yes |
| HDMI SACD Transfer | 2 Channel |
| Audio DACs | 384 kHz/32-bit D/A Conversion with AK4438 (AKM) |
| High-Definition Copy Protection (HDCP) | 2.2 |
| Dolby Atmos Height Virtualizer | Yes (* Available with future firmware update) |
| Dolby Digital Plus | Yes |
| DTS-HD Master Audio | Yes |
| Auto Surround | Yes |
| Advanced Surround | 10+1 |
| Dialogue Enhancement | Yes |
| Bi-Amp | Yes |
| 4K Ultra HD Pass-Through | Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through) |
| 3-D Ready | Yes |
| HDMI Standby Through | Yes with Input Switch / Last Memory |
| 4K Ultra HD Video Scaler | Ultra HD Upscaling |
| Audio Return Channel | Yes |
| HDMI x.v. Colour | Yes |
| Video converter to HDMI | Yes |

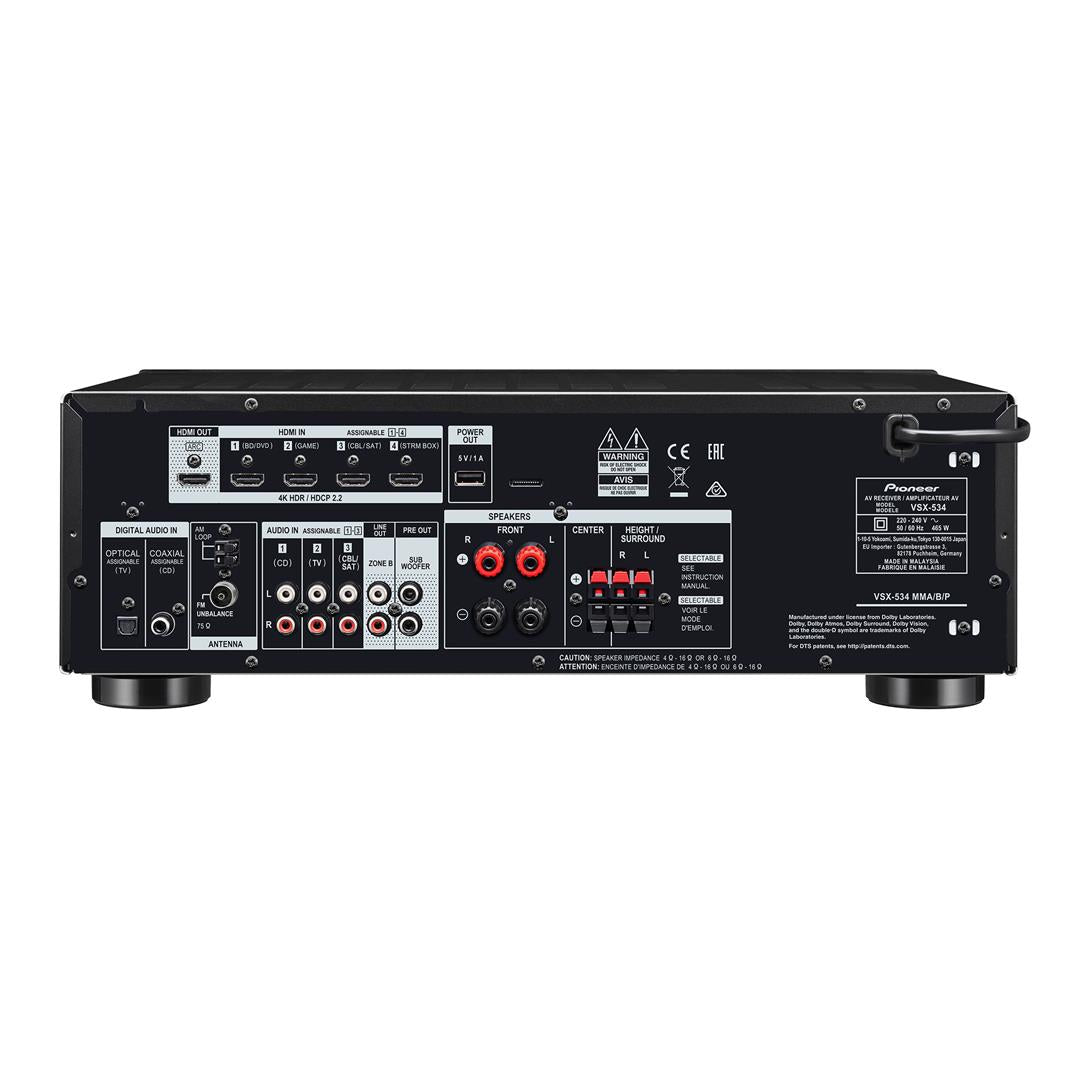

| HDMI Input / Output | 4 In (Rear) / 1 Out |
| Digital Audio Inputs / Output | 2 In (Optical 1, Coaxial 1) |
| Headphone Output | Yes |
| AM/FM Presets | AM/FM Tuner 40 Presets |
| Bluetooth Built-In | Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) |
| USB Terminal | Rear |
| Analog Audio Inputs / Output | 2 in / 0 out |
| Pre-Amp Output | 0.2 ch. |
| Front A/V Inputs | USB / 3.5mm stereo mini jack |
| Sleep Timer | Yes |
| Auto Power Off | Yes |
| FL Dimmer | Yes |
| Versatile Speaker Configuration | FRONT, CENTER, SURROUND/HEIGHT |
| Dimensions (W x H x D) inches | 17-1/8 x 5-13/16 x 12-5/8 |
| Weight | 17. lbs. |
| Warranty | 1 Years |
