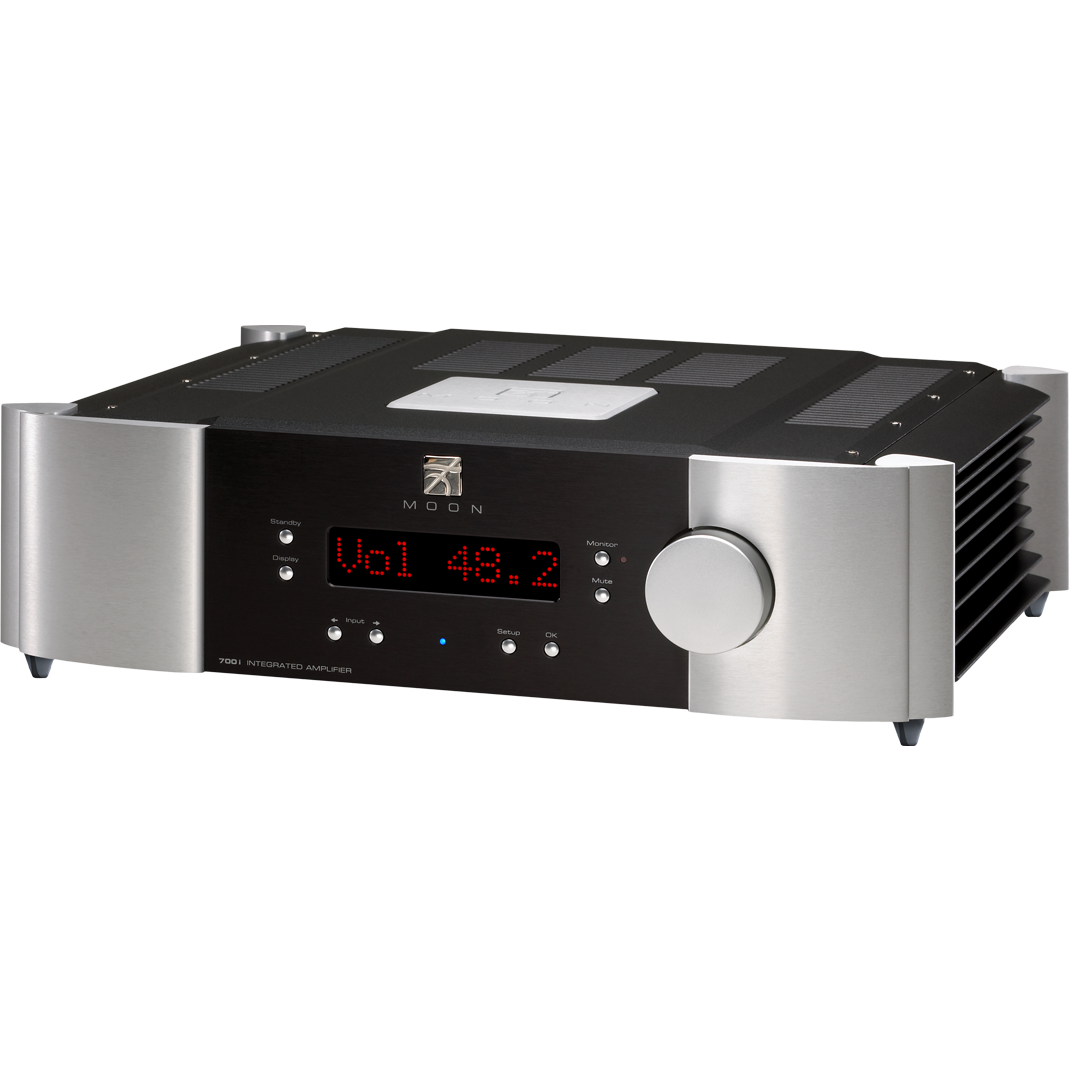

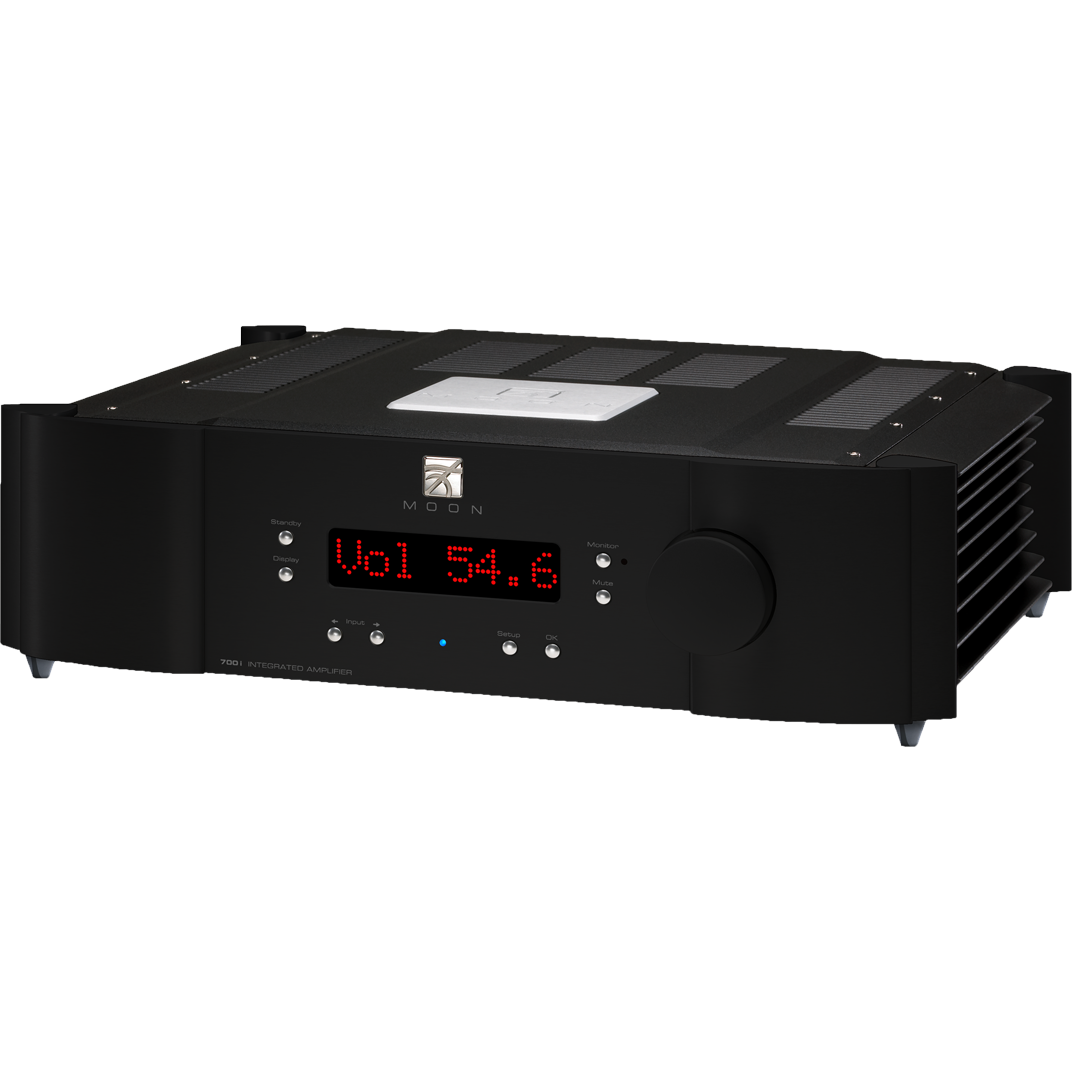

MOON 700i v2 Integrated Amplifier

• Our “Lynx” Technology eliminates the global feedback loop and results in the following: more accurate musical reproduction with respect to tonality; the elimination of common phase errors resulting from feedback.

• An oversized dual-mono power supply.

• “Class A” power output to 5 watts for greater efficiency.

• Gain offset adjustment of ±10dB for each input.

• Any input is configurable to become a “bypass input”, whereby the 700i v2’s volume control is bypassed, permitting a plethora of applications including usage in a home-theater environment.

In the box

The following accessories should be included inside the box with your integrated amplifier:

• AC power cable 9 FRM-3’ remote control with three ‘AAA’ batteries
• SimLink™ cable with 1/8” mini plug terminations on each end
• Owner’s manual
• Warranty and product registration information (USA and Canada only)

Specs

• Output Power at 8Ω
  175 W per channel
• Output Power at 4Ω
  350 W per channel
• Input Impedance
  23 700 Ω
• Inputs (RCA / XLR)
  4 pairs / 1 pair
• Monitor Loop (RCA)
  1 pair
• Gain
  37 dB
• Frequency response (full range)
  10Hz - 100kHz +0/-0.1dB
• Crosstalk @ 1kHz
  -100 dB
• THD (20Hz - 20kHz @ 1 W)
  0.015 %
• THD (20Hz - 20kHz @ 175 W)
  0.04 %
• Intermodulation distortion
  0.02 %
• Shipping weight
  62 lb / 28 kg
• Dimensions (width x height x depth)
  18.75 x 5.5 x 18.1 in
•

  47.6 x 14.0 x 46.0 cm
