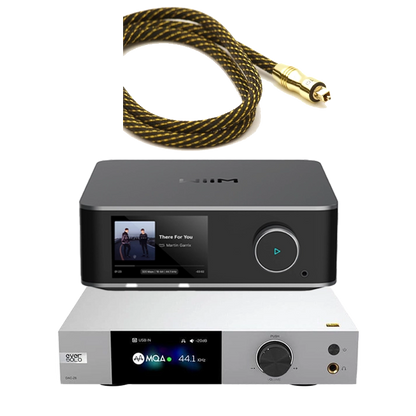

Wiim Ultra Streaming & Eversolo DAC-Z6 DAC + Free TCI Lora Optical Cable Bundle

Wiim Ultra Streaming & Eversolo DAC-Z6 DAC + Free TCI Lora Optical Cable Bundle

BUY WITH CONFIDENCE We are a 3 x Global Award Winning Retailer
Read More
FREE 6 YEAR WARRANTY INCLUDED FREE 6 year warranty included on this item
£749.00
£775.00 £749.00
Sale Sold out
VAT included.
Finish (Wiim Ultra)

Part Exchange / Trade In Quote?

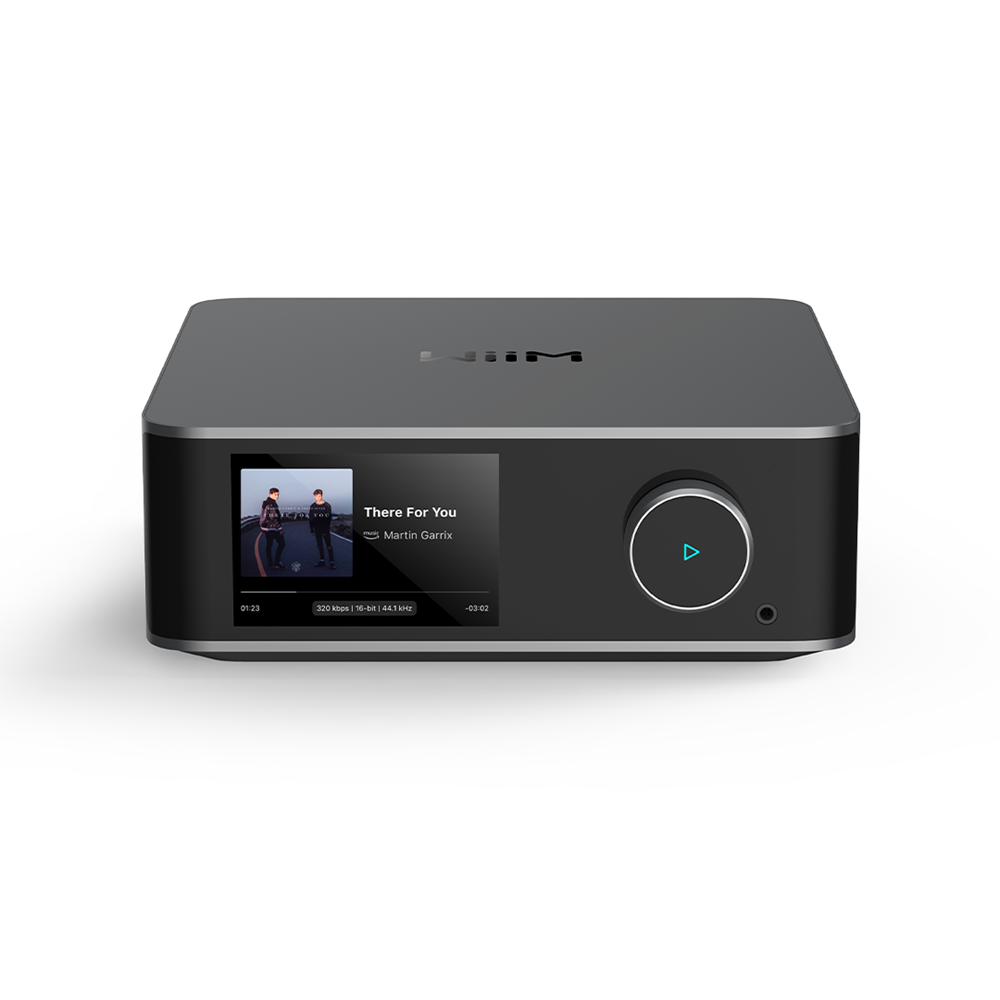

The WiiM Ultra sets a new standard for audio streamers. Designed to provide users with an unparalleled audio experience through versatile functions, rich connections, and high performance, it offers exceptional value for music lovers who are looking to improve their streaming experience.

  • Hi-Res Audio certified
  • Full touch-screen operation
  • Network streamer with variable and fixed output options
  • Roon Ready support planned (with future update)
  • Supplied with remote control
  • Multi-room playback compatible
  • Spotify Connect device for easy playback from the Spotify app
  • Tidal Connect device for easy playback from the Tidal app
  • Digital outputs allow you to connect to an external DAC
  • WiiM Home application available

EXPERIENCE HIGH-END SOUND

WiiM Ultra makes use of a premium ESS Sabre ES9038Q2M DAC chip for expert conversion of your digital audio. For superior integration into your home, it also benefits from the latest Wi-Fi 6E and BT 5.3 wireless technologies via its two antennae.

Featuring a vibrant 3.5” full-colour touchscreen, aluminium chassis, a physical volume knob, and a rich selection of audio inputs and outputs for even more vibrant and hi-res sound, it truly is a central hub for your listening space.

EASY TO SET-UP

The WiiM Ultra will automatically pop up in your WiiM Home app. The in-app guide will thereafter aid you in the rest of the set up, and you will be able to start streaming music in less than 2 minutes. The Ultra is designed to be connected straight to the analogue inputs of your amplifier or active speaker, but for other applications, there are still optical or coaxial outputs available.

PART OF YOUR ECOSYSTEM

WiiM Ultra supports Spotify Connect, Chromecast Audio, Works with Alexa, Tidal Connect, DLNA playback and Roon Ready - so you can cast to it using your existing services, as well as using the WiiM Home app to open up a wider world of music.

AUTO CALIBRATION

The device you connect your WiiM Ultra to may add latency to the audio path due to its own internal design or technologies. WiiM Ultra comes with a built-in microphone so after first set-up you can measure the sound in the room and make sure your device is synchronised perfectly for optimal playback on its own or as part of a multi-room system.

PLAY MUSIC EVERYWHERE

Building a wireless multiroom system has never been easier. Group WiiM Ultra with other Alexa-enabled devices, Google Home devices or any other WiiM streamers to have a multi-room/synchronised audio experience.

WiiM Ultra also supports multi-room playback from various source inputs, including Wi-Fi, BT, Aux and SPDIF. For the highest performance, the Ultra also boasts a high-quality analogue to digital converter chip, capable of achieving up to a 24-bit, 192kHz digital output. The result is a clearer, more detailed sound when you cast your traditional sources across the network.

WIIM HOME

All features of the WiiM Pro Plus are controllable through the WiiM Home app. So whether you want to tweak the EQ, set up a new preset or find your favourite radio station anywhere in the world - everything is made effortlessly simple with WiiM.

Specs

  • INTERNET RADIO SUPPORT
    TuneIn, iHeartRadio, vTuner and Radio Paradise
  • MQA COMPATIBILITY
    MQA Renderer
  • ROON SUPPORT
    Roon Ready (Coming Soon)
  • AUDIO CODECS SUPPORTED
    MP3, AAC, ALAC, APE, FLAC, WAV, WMA, AIFF, OGG Supported
  • TONE CONTROL
    Adaptive EQ and Graphic Equaliser built-in
  • HDMI INPUT(S)
    ARC Input
  • FIXED ANALOGUE OUTPUT(S)
    1 x RCA Pair
  • DIMENSIONS (W X H X D)
    205 x 205 x 73 mm
  • WEIGHT
    1.3 kg
  • BLUETOOTH VERSION
    5.3
  • RCA LINE INPUT(S)
    1
  • VARIABLE ANALOGUE OUTPUT(S)
    1 x RCA Pair
  • SIGNAL TO NOISE RATIO
    121 dB
  • SUPPORTED STREAMING SERVICES
    Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer and SoundCloud Supported
  • APP CONTROL
    WiiM Home
  • DAC CHIP
    ES9038Q2M
  • NETWORK CONNECTIVITY
    Wi-Fi & Ethernet
  • DIGITAL OUTPUT(S)
    Coaxial, Optical, USB
  • CPU SPECIFICATIONS
    Quadcore A53
  • MEMORY
    512MB Flash + DRAM
  • MULTI-ROOM STREAMING
    Multiple
  • OUTPUT OPTIONS
    Switch variable output to fixed level
  • SMART HOME TECHNOLOGIES
    Works with Chromecast Audio, Google, Siri and Alexa
  • ANALOGUE INPUT (ADC)
    Up to 192k, 24bit
  • THD+N (ANALOGUE OUT)
    - 113dB (0.00023%)

OVERVIEW DAC-Z6

  • Dual ES9068 D\A converter chip, independent decoding for dual channel.
  • The 3rd generation XMOS XU316 with higher performance and faster speed.
  • High precision, low jitter dual clock oscillators synchronous processing.
  • Up to DSD512 Native, PCM768Hz@32Bit decoding.
  • Optical, Coaxial and USB support MQA full decoding and rendering.
  • Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.
  • Fully balanced audio architecture, differential amplifier circuit and professional calibration.
  • High-performance headphone amp output, 16-300 ohm headphone driver.
  • 3-inch LCD screen, with diverse VU meter modes.
  • Low ripple power supply to ensure a purer power source.
  • Exclusive mobile phone controller APP for global control.

SPECIFICATIONS

Model EverSolo DAC-Z6
Display Screen 3-inch LCD Screen
Chassis Aluminum alloy
DAC ES 9068*2
Audio Processor XMOS XU316
OPA Chip RT 6863*6
Power Supply Low noise switching power supply
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
USB-C DAC Input Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Analog Audio Output Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended
USB Port USB2.0*1（only for firmware upgrade）
Control Methods Remote control, mobile APP control and knob control
Headphone Impedance 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
XLR Audio Output Output Level(Vrms)：4.1Vrms@0dBFS
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
Noise@No-wt ：<3uVrms
SNR)@No-wt：125@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-123dB@1kHz
DNR)@No-wt：125dB@1kHz
RCA Audio Output Output Level(Vrms)：2.1Vrms@0dBFS
THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz)
THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz)
Noise@No-wt ：<2.5uVrms
SNR)@No-wt：21dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-118dB@1kHz
DNR)@No-wt：121dB@1kHz
Headphone (low gain mode) Output Level(Vrms)：1.2Vrms@0dBFS
Max Power：： 45 mW@32Ω
THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)
THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：114dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：114dB@1kHz
Headphone (high gain mode) Output Level(Vrms)：2.8Vrms@0dBFS
Max Power： 26 mW@300Ω
THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)
THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：121dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：121dB@1kHz
Power Input AC 110~240V 50/60Hz
Rated Power 9W
Dimensions 270mm(W) * 187mm(D)* 50mm(H)
Packing List Remote control*1, power cable*1, product manual*1


Our TCI Lora Optical interconnect is designed for the latest DVD, CD, DACs and S/PDIF source components featuring Dolby Digital®. It delivers precision digital signal transfer and features a superior medical-graded polymer fibre optical core. Finished with high quality Toslink connectors and polished terminations to ensure minimal signal loss, it ensures jitter-free performance. The result is music and dialogue reproduced with exceptional clarity, detail, and class-leading dynamics.



- Medical-graded polymer fibre optic core
- Protective PET outer jacket
- High quality gold plated engineered Toslink connectors
- Precision polished terminations
