SVS Ultra Evolution Bookshelf Loudspeakers

Name: SVS Ultra Evolution Bookshelf Loudspeakers
Brand: SVS
SKU: 53572039311733
Price: 1499.00 GBP
Availability: InStock

SVS Ultra Evolution Bookshelf Loudspeakers

£1,499.00

Sale Sold out

VAT included.

Finish Black Ash Piano Gloss Black Piano Gloss White

Product variants

Quantity

Part Exchange / Trade In Quote?

Reference flagship bookshelf speaker is a technology tour-de-force that stands toe-to-toe with the finest loudspeakers in the world delivering reference sound for both two-channel audiophiles and home theater fans.

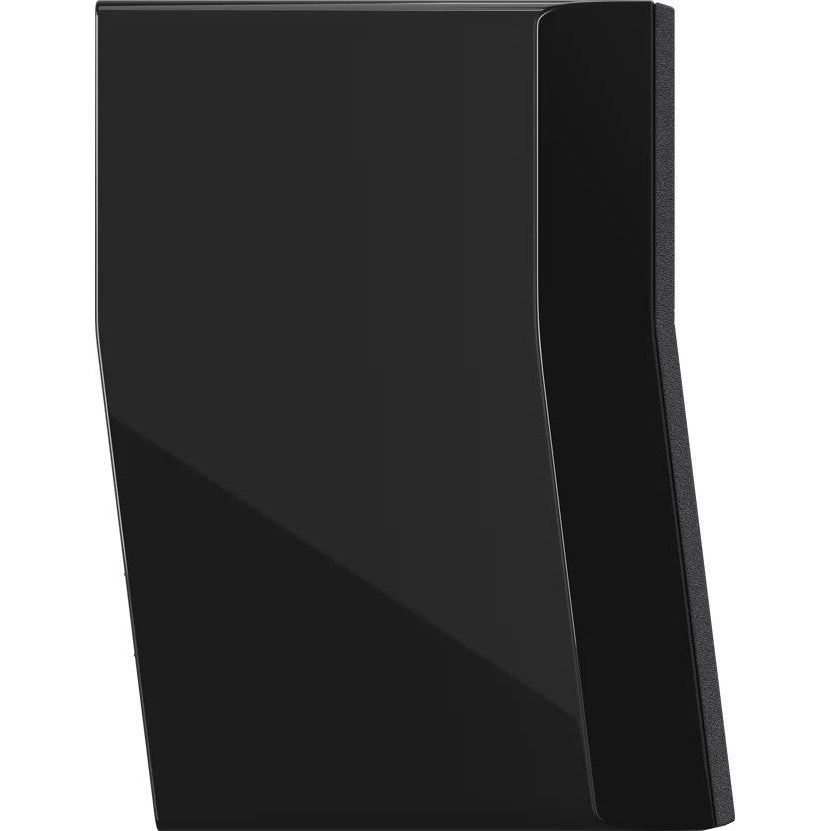

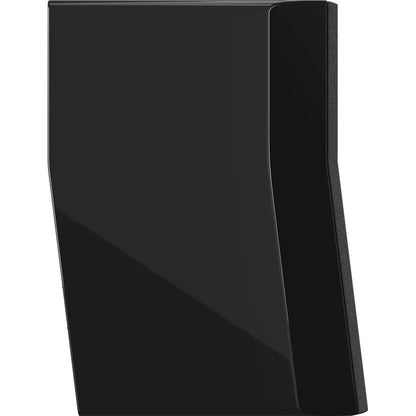

Time Aligned Cabinet Geometry

Curved front baffle aligns the sonic emanation point of the tweeter and woofer on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.

Maximizes phase coherence for a more convincing and immersive soundstage with pinpoint accuracy and imaging.

Diamond Coated Aluminum Dome Tweeter

Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”

6.5" Glass Fiber Composite Mid-Woofer

Superb stiffness to mass ratio conveys stunning dynamics with flawless tonal accuracy, and deep, accurate bass.

Unrelenting Attention to Detail

Acoustically tuned enclosure optimizes low frequency tuning and eliminates any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum.

Uncompromising 2-Way crossover with premium components seamlessly blends driver output. Subtle musical details are rendered with breathtaking clarity, while massive dynamics radiate with weight and control from the highest to lowest octaves.

Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Chamfered front baffle minimizes edge diffraction for optimal off-axis frequency response.

Neodymium magnetic grilles

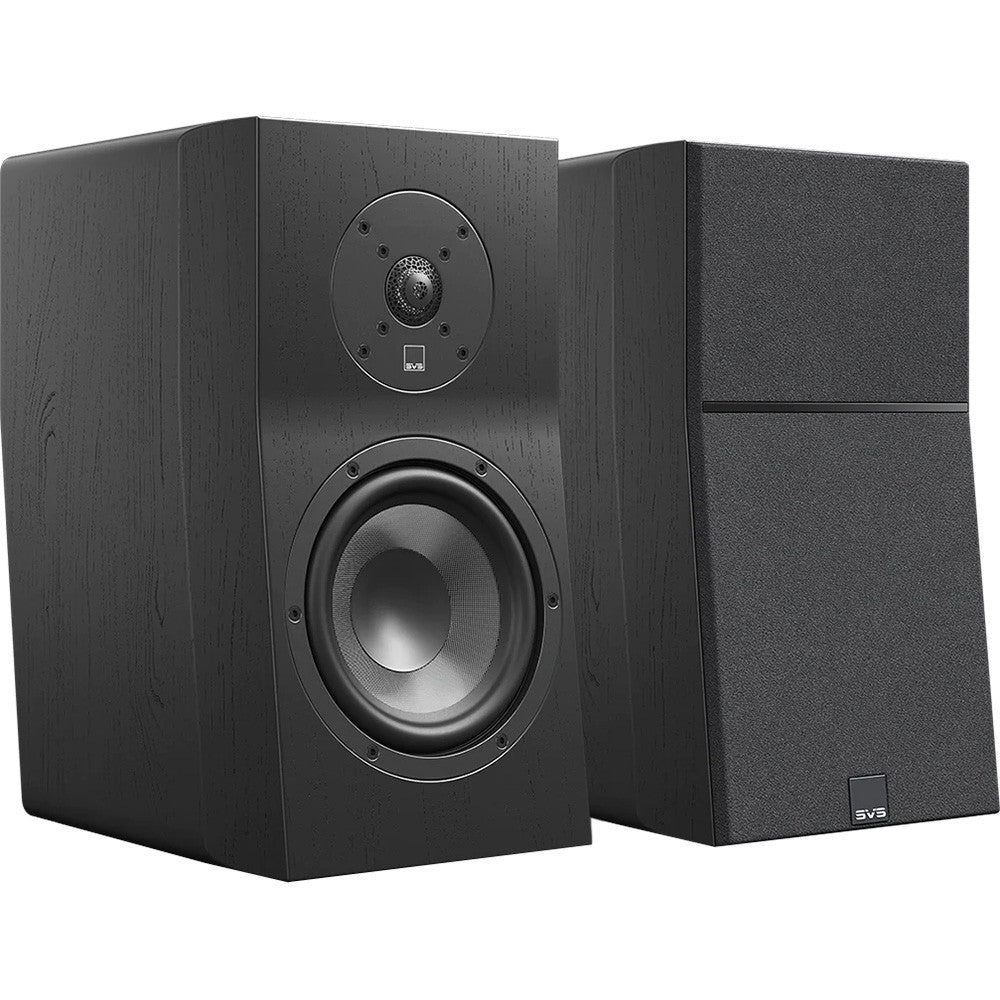

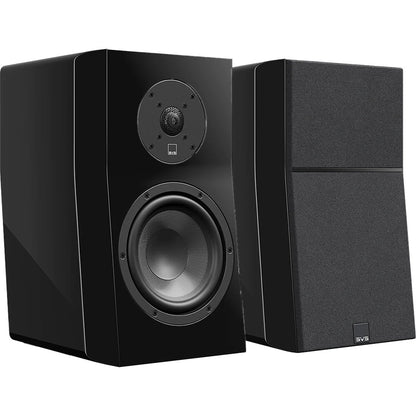

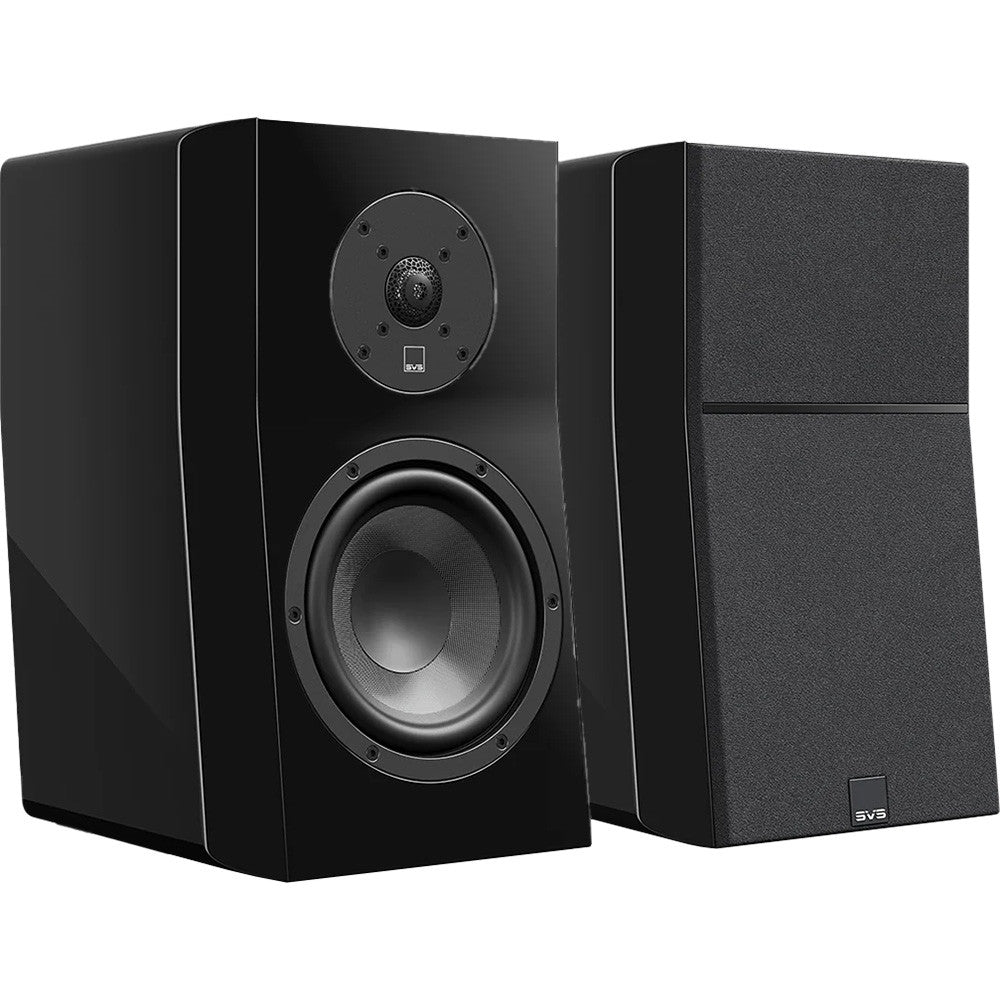

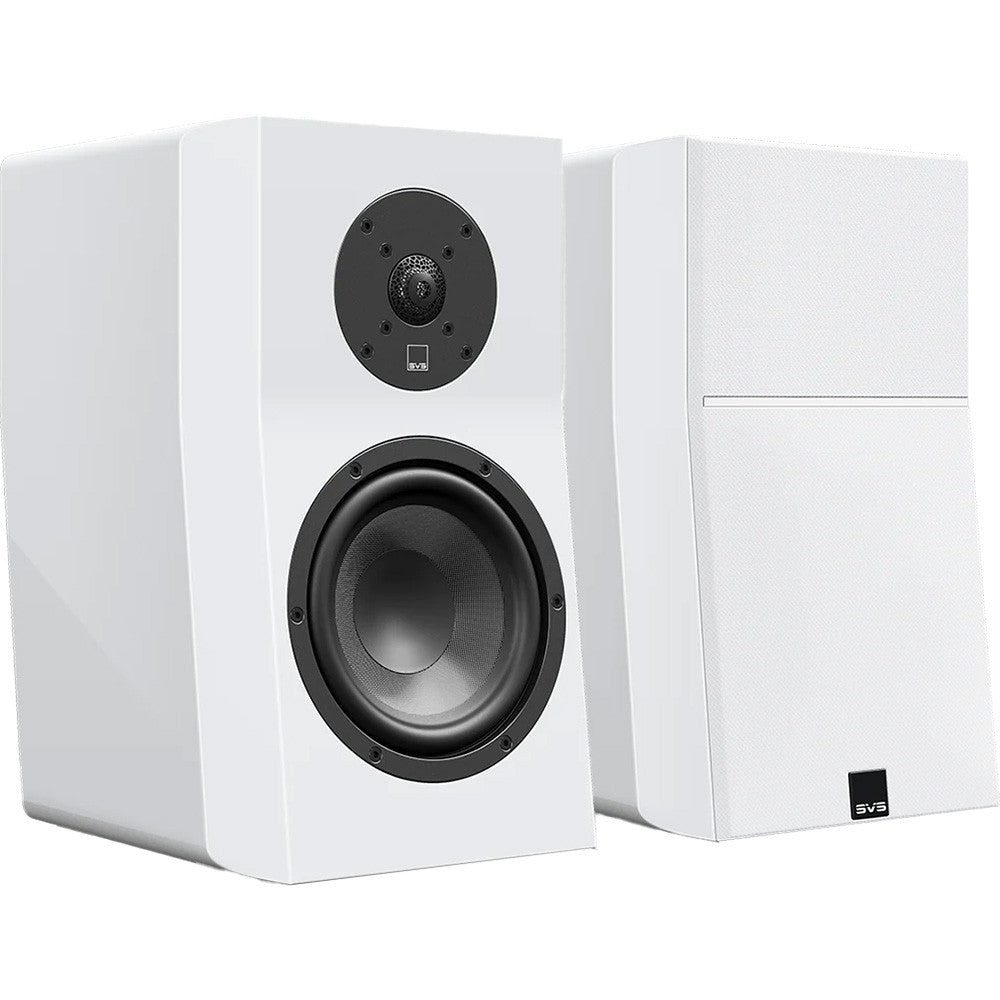

Stunning Piano Gloss Black, Piano Gloss White, and Black Oak Veneer Finish

Specs

Frequency Response / Acoustic Data:

Frequency Response: 40 Hz-40 kHz (+/-3 dB).
Nominal impedance: 6 ohms.

Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended amplifier power: 20 – 150 watts

Speaker Specs:

Bookshelf Loudspeaker
Piano gloss black, piano gloss white, real black oak veneer finish options

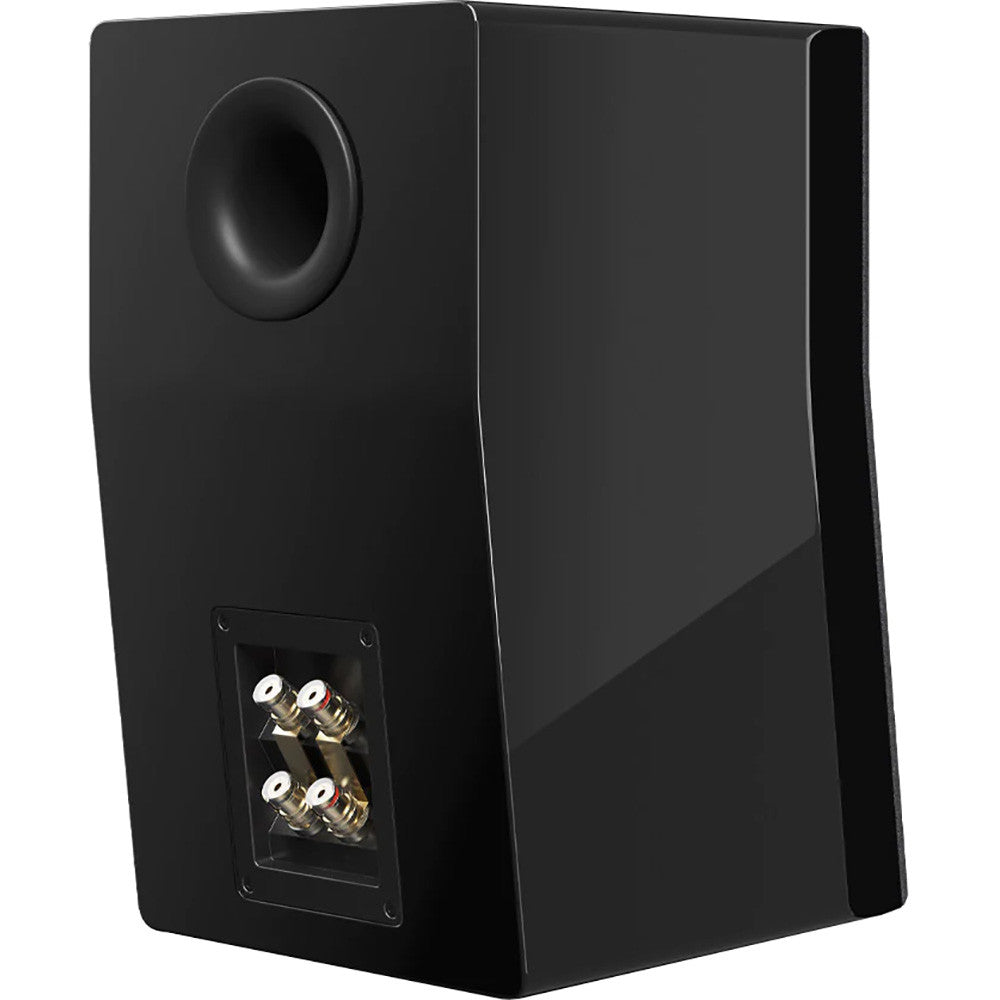

Dual gold-plated 5-way binding posts
2” wide-ﬂared rear-ﬁring port 

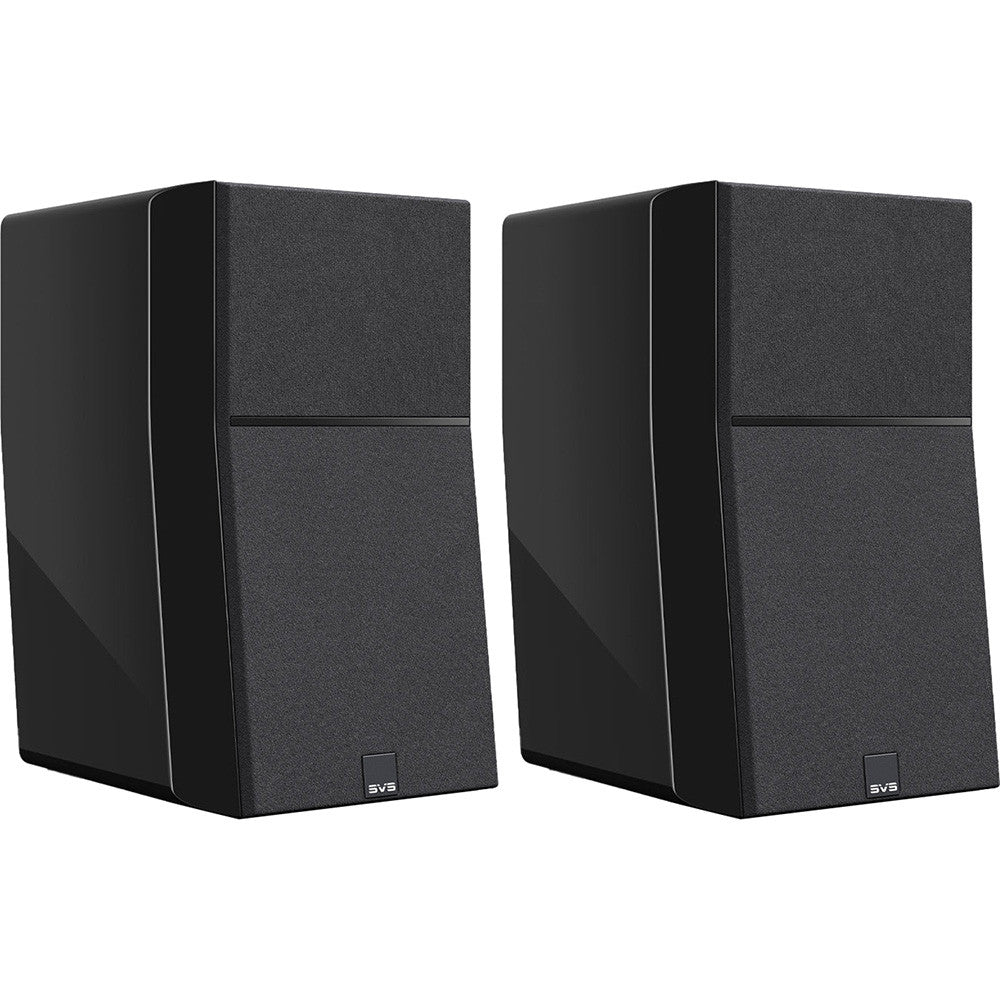

Cloth grille with magnetic retention system
Elastomer stick-on bumper feet

Cabinet Dimensions: 14.88” (H) x 8.66” (W) x 11.25” (D) / 378mm (H) x 220mm (W) x 285.7mm (D)
Overall Dimensions: 15.04” (H) x 8.66” (W) x 11.64” (D) / 382mm (H) x 220mm (W) x 295.6mm (D) (includes grille)
Shipped Dimensions (Pair): 23.9” (H) x 19.1” (W) x 16.4” (D) / 607mm (H) x 485mm (W) x 417mm (D)
Weight Unboxed: 18.8 pounds / 8.6 kgs
Shipped Weight: 40.7 pounds / 18.9 kgs

Driver Specs:

1” Diamond Coated Tweeter

FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
Silver tinsel leads for optimal signal transfer and power handling.

6.5” Woofer:

Long stroke motor and suspension for high output.
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover & Cabinet Specs:

Crossover:

2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
Tweeter-to-Woofer crossover: 1.8 kHz

Cabinet:

Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
