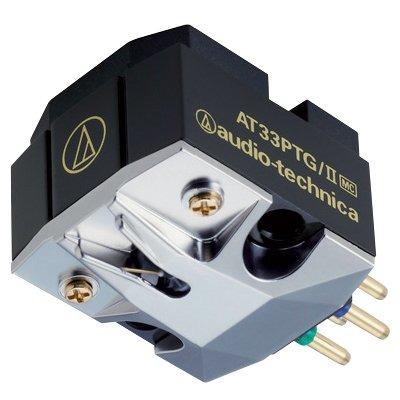

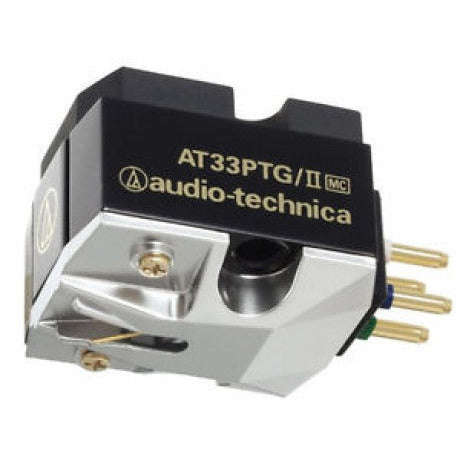

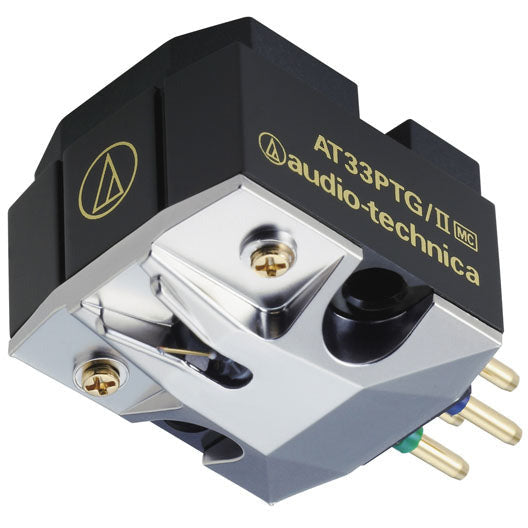

Audio Technica AT33PTG/II Cartridge
Audio Technica AT33PTG/II Cartridge
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
Advanced nude tapered boron and weight reduction
This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17W to 10W. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.
High performance and long-life MicroLinear™ stylus
MicroLinear™ (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.
Specs
| Type | Dual Moving Coil |
| Mounting | 1/2" Centers |
| Frequency Response | 15 - 50,000Hz |
| Body Material | Aluminium/Synthetic Resin |
| Channel Separation | 30dB (1kHz) |
| Output Channel Balance | 1dB (1kHz) |
| Output Voltage | 0.3mV (1kHz and 5cm/sec.) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (2.0g standard) |
| Stylus Shape | MicroLine™ |
| Stylus Curvature Radius | Micro linear |
| Stylus Construction | Nude Square Shank |
| Cantilever | Gold-plated solid boron |
| Coil Impedance | 10Ω (1kHz) |
| Coil Inductance | 22µH (1kHz) |
| DC Resistance | 10Ω |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Terminal Pins | Brass |
| Recommended Load Impedance | Min 100Ω |
| Weight | 6.9g |
| Dimensions | H16×W16.6×D26.5mm |
| Replacement Stylus | When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. |
| Accessories Included | 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101) |
